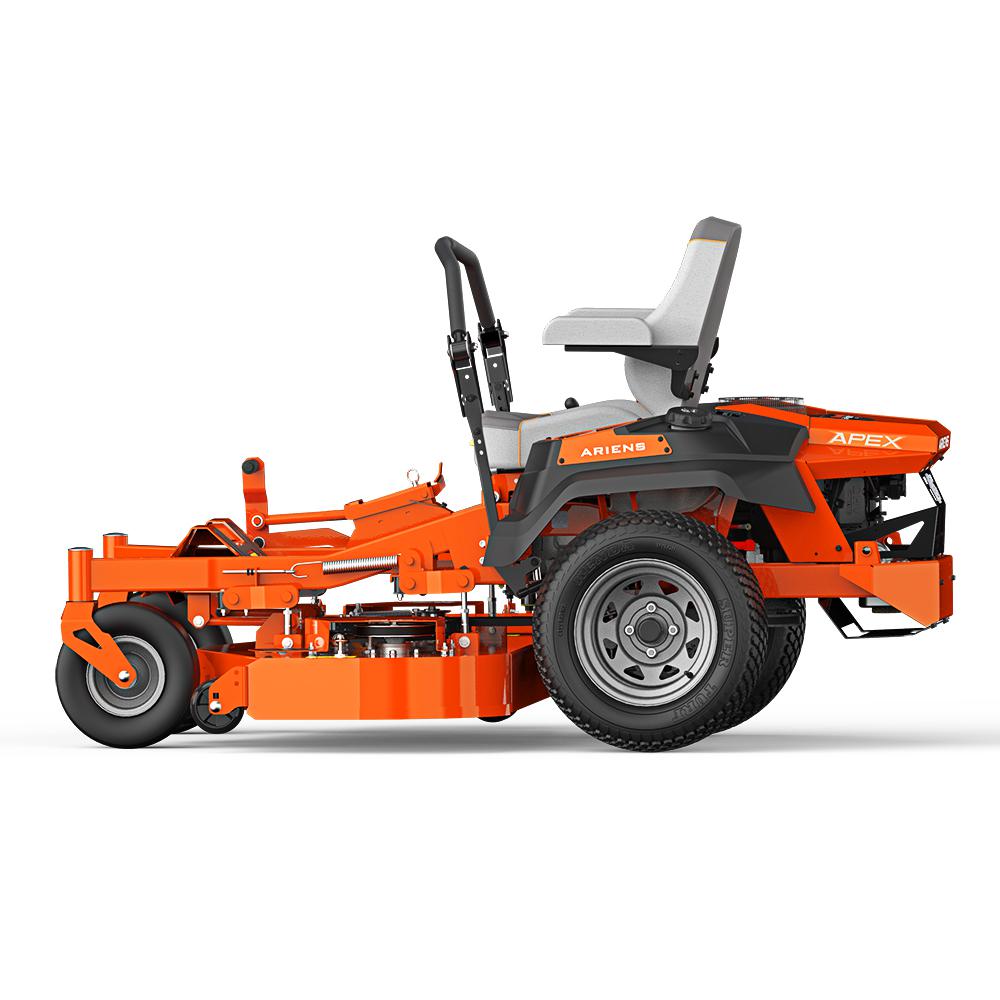

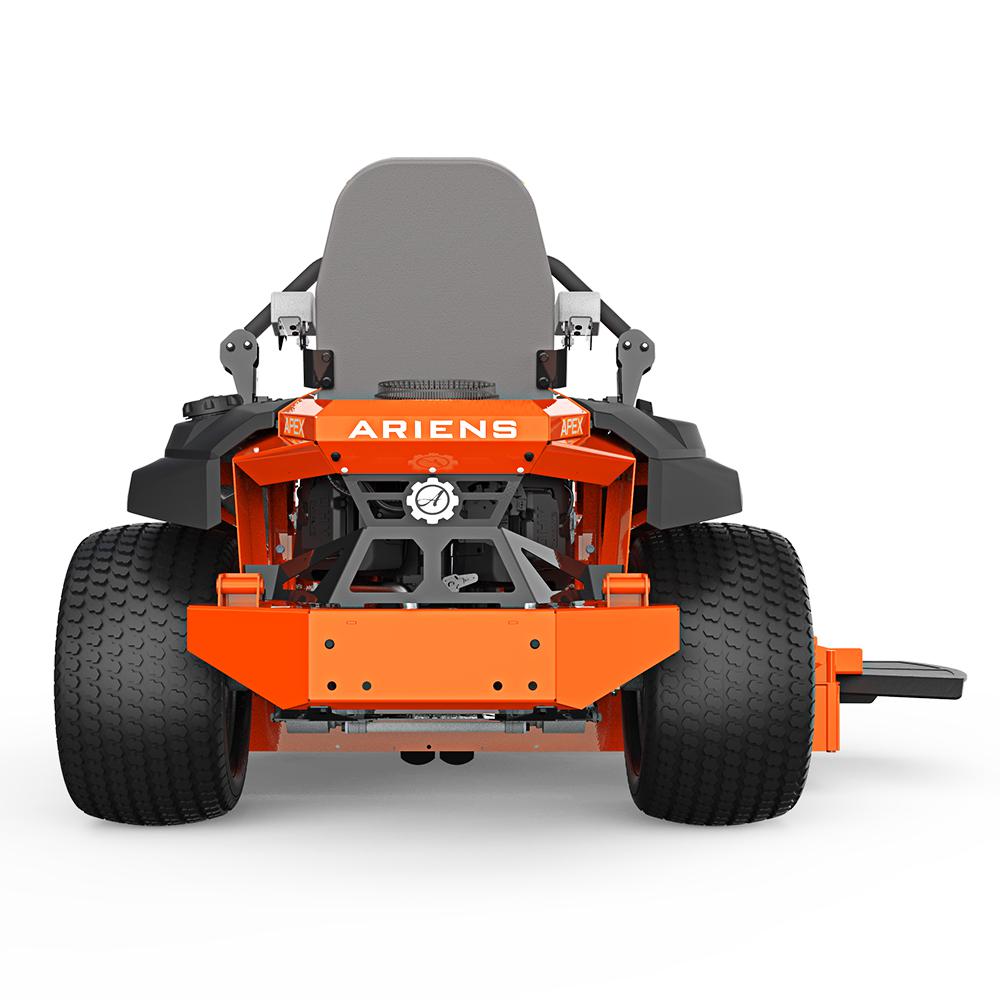

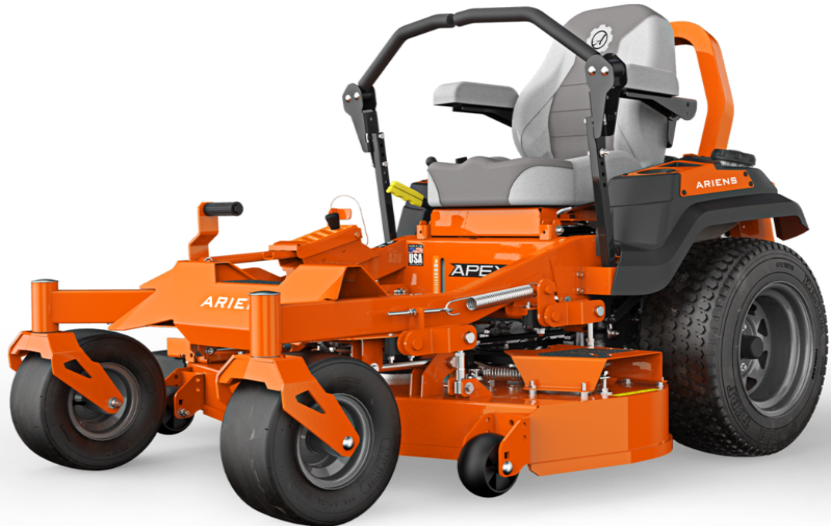

Ariens Apex 48 KW Zero Turn Lawn Mower

Ariens Apex 48 KW Zero Turn Lawn Mower

• Featuring a 48” ENVY^™ ELITE CUTTING SYSTEM fabricated deck that’s 5½” deep and made of 10-gauge steel
• Powerful 23 hp/726 cc Kawasaki FR691V engine

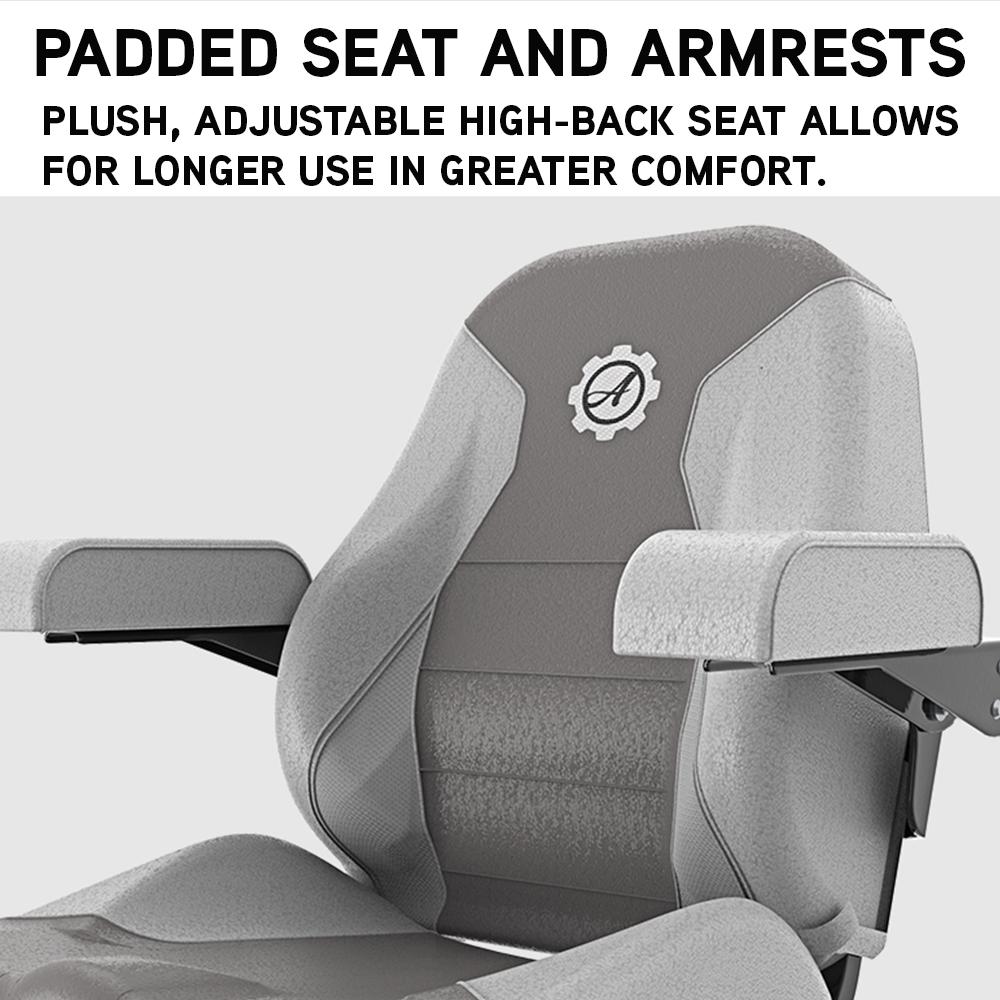

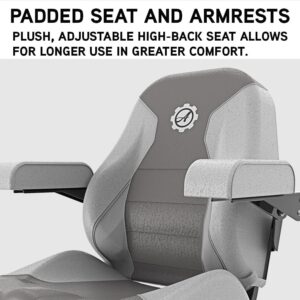

• Fully tubular steel frame, Self-adjusting belt technology, High-Back Padded Seat and armrests, Foot-operated deck lift

SPECIFICATIONS:

ENGINE

Engine Brand

Kawasaki

Starting System

12-Volt Key Start

Engine Cycle

4-Cycle

HP

23 HP

CC

726 CCs

Fuel Tank Size

5 Gallons

Engine Cylinders

2 Cylinders

Oil Filter

Yes

Consumer Engine Warranty

2 Years

Commercial Engine Warranty

1 Year

MOTOR

Battery Included

Included

Battery Voltage

12 Volts

Battery Type

Lead Acid

DECK

Cutting Options

3-in-1 (Side-Discharge/Bag/Mulch)

Deck Material

10-Gauge

Deck Construction

Welded

Spindle Material

Aluminum

Blades

3 Blades

Deck Positions

15 Positions

Cutting Width

48 Inches

Cutting Height

1.5-5.0 Inches

Deck Lift System

Manual Foot Operated

Engagement

Ogura GT1A Electric Clutch

Deck Drive

Belt

DRIVE

Speeds

Variable

Maximum Speed

8 MPH

Maximum Reverse Speed

4 MPH

Drive Wheels

Rear Wheels

Transmission Type

Hydrostatic

Drive System

ZT-3100 Hydro-Gear Transaxle

ACCESSORIES

Rear Bagger

Sold Separately

Engine Guard

Yes

Seat Type

Adjustable High Back w/ Seat Springs

Hour Meter

Included

Arm Rests

Included

Trailer Hitch

Sold Separately

Mulcher Kit

Sold Separately

Headlights

Sold Separately

WHEELS

Front Tire Size

13 x 6.5 Inch

Front Axle

Fixed

Rear Tire Size

22 x 10 Inch

Tire Type

Pneumatic Wheels

OVERVIEW

Certification

ANSI

Weight

823 Pounds

Product Length

71.5 Inches

Product Width

50.0 Inches

Product Height

42.0 Inches

Consumer Warranty

3 Years

Commercial Warranty

1 Year
