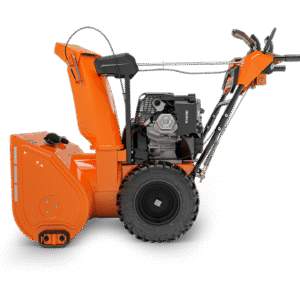

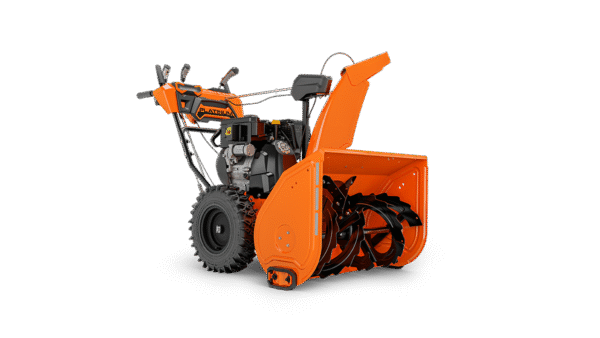

Ariens Platinum 30 SHO Two Stage Snow Blower

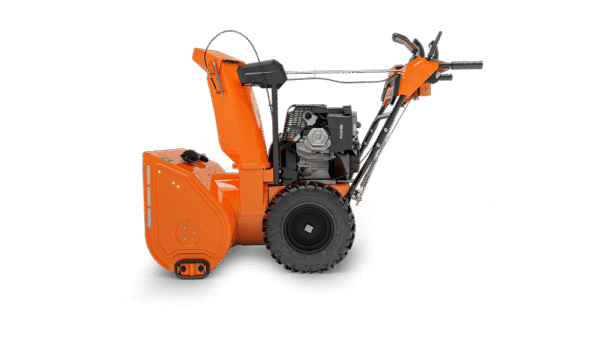

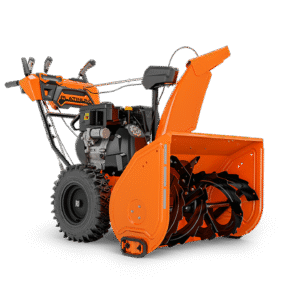

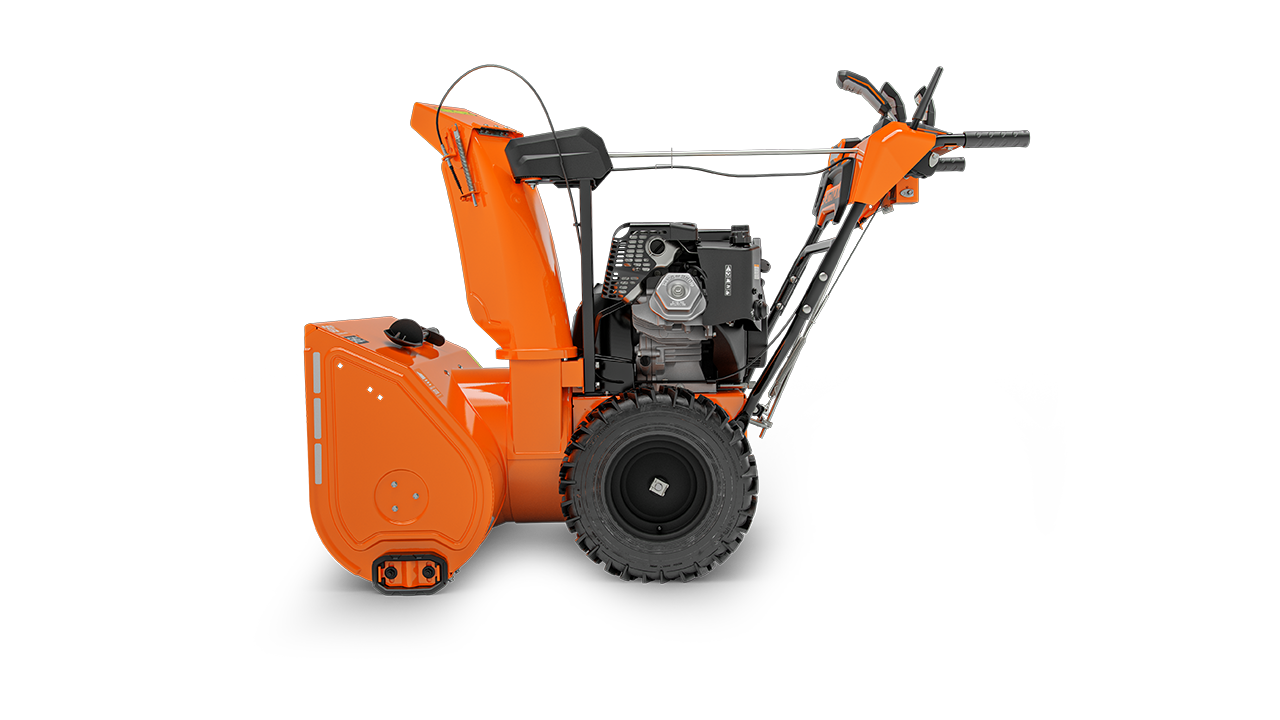

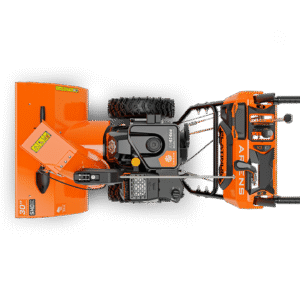

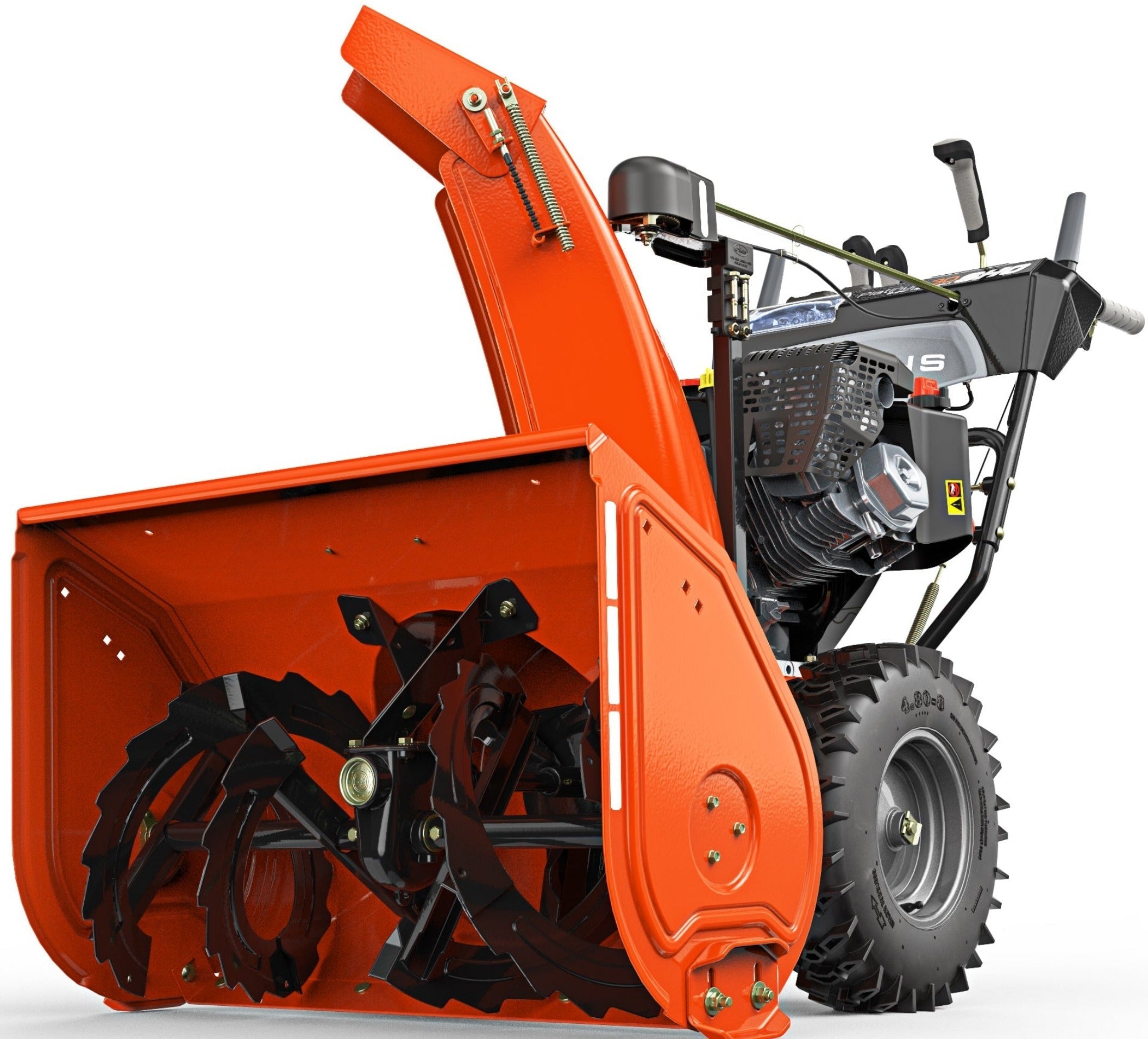

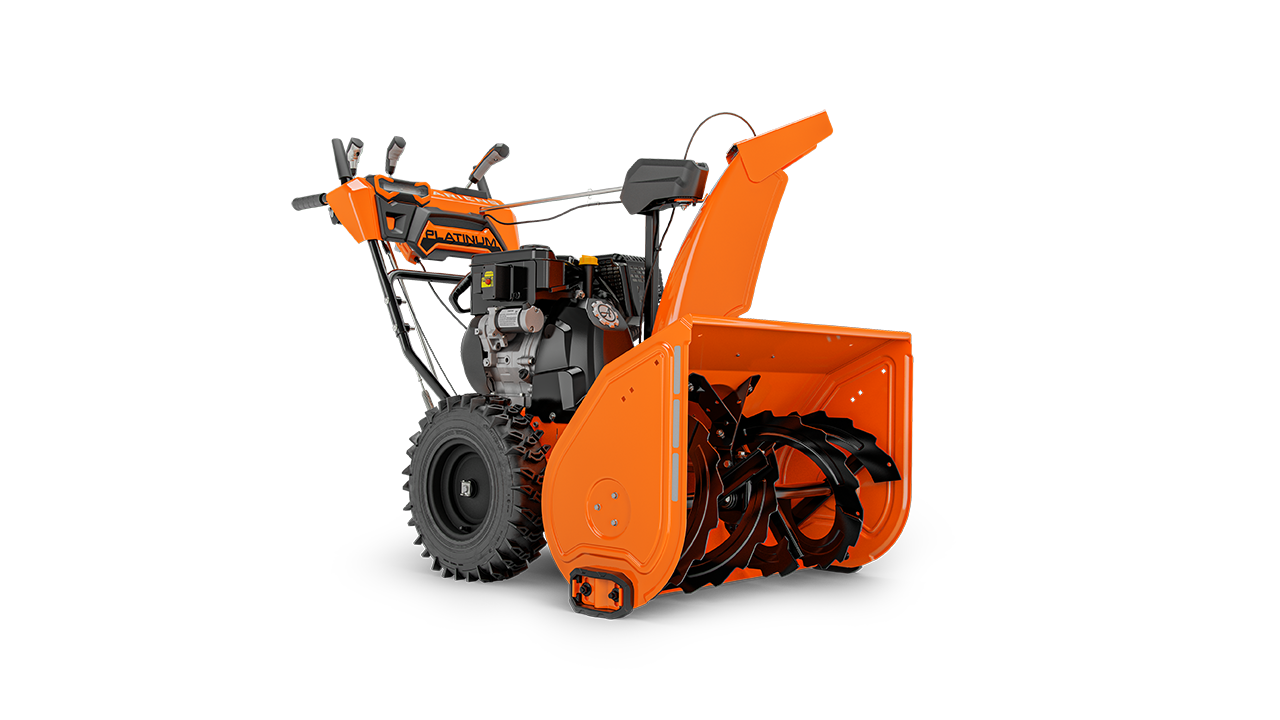

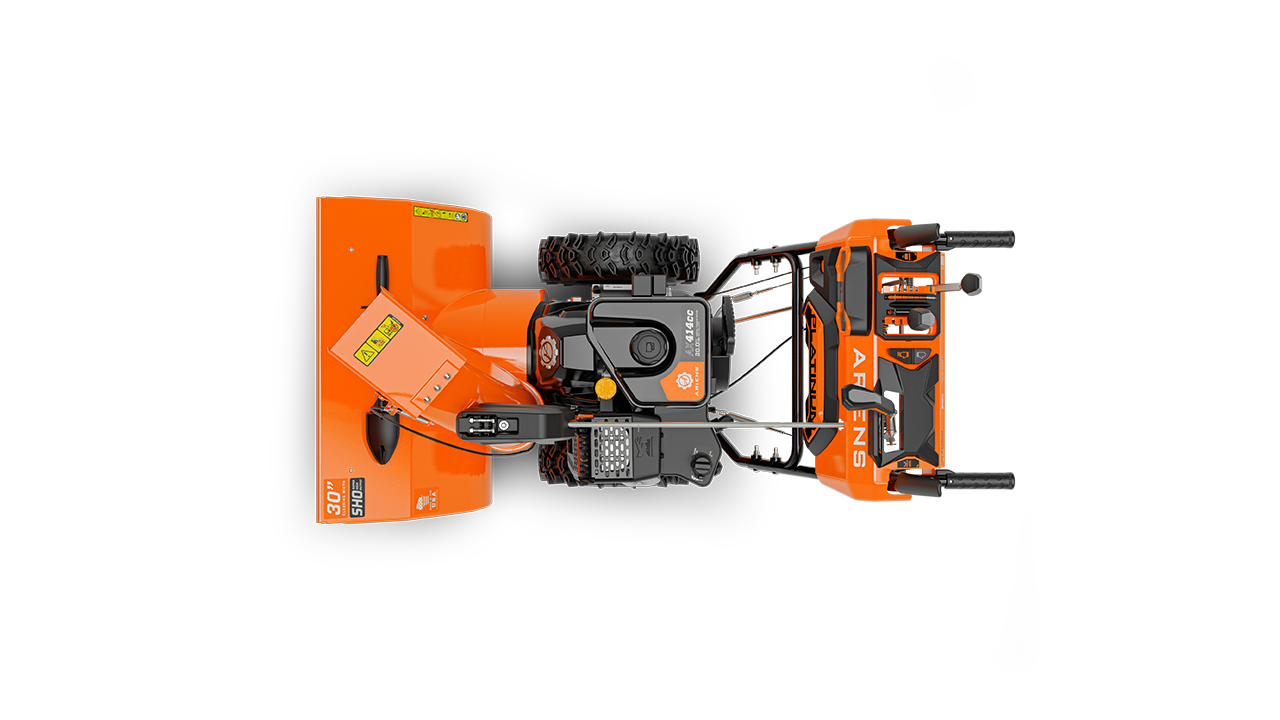

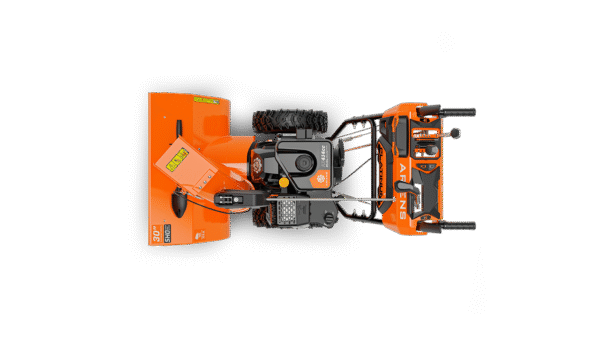

Ariens Platinum 30 SHO (30″) 414cc Two-Stage Snow Blower

FEATURES:

Powerful 414cc Ariens AX414 Engine
•Designed to function in sub-zero conditions
•120-volt electric start w/recoil (cord not included)

Super High-Output Impeller (SHO)
•Faster impeller speeds by way of modified belts and pulleys
•Improved output and throwing distance

Heavy Duty Disc-O-Matic Drive With Large Cast Iron Gear Case
•Easily shift into any of the six forward or two reverse speeds
•Provides additional power in extreme snow conditions

New Improved Quick Turn Chute Control
•No more finicky cable adjustment with separate pull back motion
•Rotates up to 200 degrees using single lever

Remote Chute Deflector Control
•Dash-mounted control to change position & angle of the deflector

Auto-Turn Steering Technology
•Senses change in direction automatically as you turn
•Adjusts power to the inside wheel to make turning easier

Hand Warmers
•Keeps your fingertips toasty warm in sub-zero weather

SPECIFICATIONS

Engine

Engine Brand Ariens

Engine Type 4-Cycle OHV

CC 414 CCs

Starting System 120-Volt Electric /w Recoil

Fuel Tank 0.8 Gallons

Torque 20 lbs.

Auger Housing / Chute Control

Auger Diameter 14 Inches

Impeller Diameter 14 Inches

Profile Steel 3-Blade

Auger Material Serrated Steel

Chute Material Steel

Chute Rotation Quick-Turn

Turning Radius 200 degrees

Max Throwing Distance 55 Feet

Clearing Width 30 Inches

Intake Height 21 Inches

Drive System

Drive Disc-O-Matic

Steering Auto-Turn

Gear Case Cast Iron

Reverse Speeds 2 Reverse

Tire Type Directional Snow Tread

Forward Speeds 6 Forward

Tire Size 16″ x 4.8″

Options

Remote Deflector Controls Yes

Drift Cutters Sold Separately

Front Weights Sold Separately

Interlocking Controls Yes

Hand Warmers Yes

Headlights Halogen

Skid Shoes Included – Reversible

Overview

Weight 293.8 Pounds

Product Length 58.3 Inches

Product Width 32.4 Inches

Product Height 45.9 Inches

WARRANTY

Consumer Warranty 3 Years

Commercial Warranty 90 Days
