Cub Cadet Pro Z 960 S KW

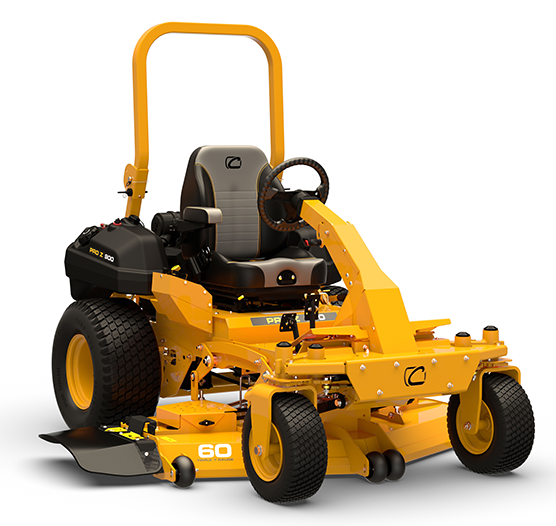

Cub Cadet Proz Z 960 S Professional Zero Turn Lawn Mower

• 35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission
• 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-year limited commercial warranty (no hour limitations)

Specifications

MOWER DECK

BLADE-TIP SPEED (APPROX)

18,500 fpm

BOTTOM REINFORCEMENT

7ga. (.187″) bottom plate

ROLLED LEADING EDGE REINFORCEMENT

1/4″ (.250″) steel

SIDE CONSTRUCTION

5/16″(.313) steel on trim and discharge sides

SPINDLE COVERS

Steel – Tool-less Quick Release

TOP REINFORCEMENT(S)

7ga. (.187″) top plate

TRIM-SIDE WEAR GUARD

3/4″ Thick UHMW-PE Replaceable Trim-side Wear Guard

DECK MATERIAL

fabricated 7ga. (.187”) steel shell

ANTI-SCALPING

4 Front HD w/ Bushings & Grease Zerk

DECK BLADES

Triple-blade / High-lift blade (standard) Marbain Blade

DECK HEIGHT ADJUSTMENT

Foot pedal with spring assist
16 Positions

DECK SIZE/TYPE

72″ FABRICATED DECK

DECK STYLE/CONSTRUCTION

7ga. top plate
7ga. bottom reinforcement
¼” rolled leading edge

DISCHARGE CHUTE

Heavy-duty Flex chute (impact resistant)

CUTTING HEIGHT

1″ – 5″

GENERAL

CRUISE CONTROL

N/A

CUP HOLDER

Integrated into Side Pod

FRONT TIRES

16″ x 6.5″ – 8″ turf

FRAME

Fully welded, full-length 3/8 x 5″ laser cut steel / integrated tie-down slots

FRONT AXLE / YOLKS

2″ x 3″ solid axle tube with ISO dampening suspension and 1/2″ thick steel front yokes

LENGTH / WIDTH / HEIGHT*DISCHARGE CHUTE UP WIDTH*ROP’S UP HEIGHT

80″ L x 50″ W x 58″ H

PTO CLUTCH

Warner PTO Clutch (200 ft. lb.)

PARK BRAKE / BRAKING

Hand-operated lever with integrated hydro pump release lever

ROPS

2″x2″ Foldable 3 Position Low Profile Clearance

REAR BUMPER

5/16″ Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch

REAR TIRES

26″ x 12″ – 12″ (Turf Tread)

SEAT TYPE

High-back Air-Ride suspension with EVC cushion,
padded arm rests
ISO mounted base (lateral suspension)
angle back adjust and lumbar support
seat belt

THROTTLE/PTO/KEY SWITCH

HD Low-profile throttle lever, sealed key switch & electronic fingertip engagement pto

WEIGHT (APPROX)

1631 LBS.

HOUR METER

Standard electronic

SAFETY SYSTEMS

Operator presence

Engine & Drive System

ENGINE TYPE

Kawasaki FX1000v

FUEL CAPACITY

Twin 7.45 gal. tanks (14.9 gal. total) with electronic fuel gauge

HORSEPOWER / CC’S

35hp – 999cc

GROUND SPEED

Fwd: 14 mph / Rev: 7 mph

TRANSMISSION

Parker HTG 16cc pump / 310cc wheel motor

STEERING

LAP BAR / STEERING WHEEL ADJUSTMENT

Multi-position Quick-adjust steering column

LAP BAR / STEERING WHEEL CONTROL

High Performance Steering Wheel & Foot-pedal Control

SPECIFICATIONS

WARRANTY

3 year / no hour limit commercial warranty
