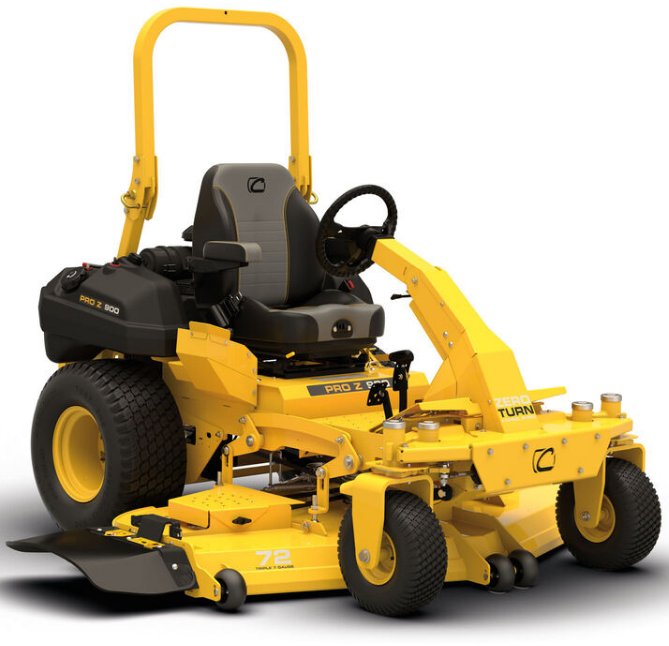

Cub Cadet Pro Z 972 S KW

SPECIFICATIONS:

Engine

Engine Brand

Kawasaki®

Engine Model

FX Series

Engine Model Number

1000V

Engine Displacement

999cc

Engine Output

35HP

Fuel Tank Capacity

Dual 7.45 gal. US (28.2 L)

Cylinders

Twin

Engine Start

Ignition Key

Engine Oil Capacity

2.0 qt. US (1.89 L)

Lubrication

Fully pressurized

Charging System

15 amp regulated

Fuel Gauge

Electronic

Choke

Separate Choke

Air Filter

High Density

Oil Filter

Yes

Fuel Delivery

Carburetor

Drive System

Transmission

Parker HTG 16cc pump / 310cc wheel motor

Forward Speed

14 mph / 22.5 km/h

Reverse Speed

6 mph / 9.5 km/h

Cutting Deck

Deck Cutting Width

72 in

Deck Material

fabricated 7ga. (.187”) steel shell

Deck Engagement (PTO)

electronic fingertip engagement

Deck Construction

7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge

Spindle Construction

8″ sealed cast aluminum housing (maintenance-free)

Blade(s)

Triple-blade / High-lift blade (standard) Marbain Blade

Cutting Height Range

1” to 5” in 1/4” increments

Anti-Scalping

4 front deck gauge wheels

Deck Positions

Foot pedal with spring assist 16 Positions

Warranty

Warranty

3 year / no hour limit commercial warranty and 5 year / 1,750 hour limited deck construction warranty

Deck Shell Warranty

5 year / 1,750 hour limited deck construction warranty

Commercial Warranty

3 year / no hour limit commercial warranty

Chassis

Frame

Fully welded, full-length 3/8 x 5″ laser cut steel / integrated tie-down slots

Front Axle

2″ x 3″ solid axle tube with ISO dampening suspension

ROPS

2″ x 2″ spring-latch tool-less foldable 3 position

Bumper

5/16″ Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch

Yokes

1/2″ thick steel front yokes

Controls

Cruise Control

NA

Comfort

Seat Type

High-back Air-Ride suspension with EVC cushion, seat belt

Armrests

Padded arm rests

Seat Suspension

ISO mounted base (lateral suspension)

Seat Adjustment

Angle back adjust and lumbar support

Wheels

Rear Tires

26″x12″-12″

Front Tires

16″x6.5″-8″Kenda K505

Tire Tread

Turf Tread

Dimensions

Dimensions L/W/H

88″ L x 85″ W x 52″ H

Weight (approx.)

1631 lbs.

Additional Specifications

Hour Meter

Crew Boss

Discharge Chute

High-density, impact-resistant rubber

Cup Holder

Integrated into Side Pod

Model Number

53FIHMUY050

Disclaimer

Specifications Disclaimer

Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
