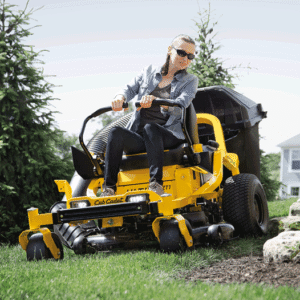

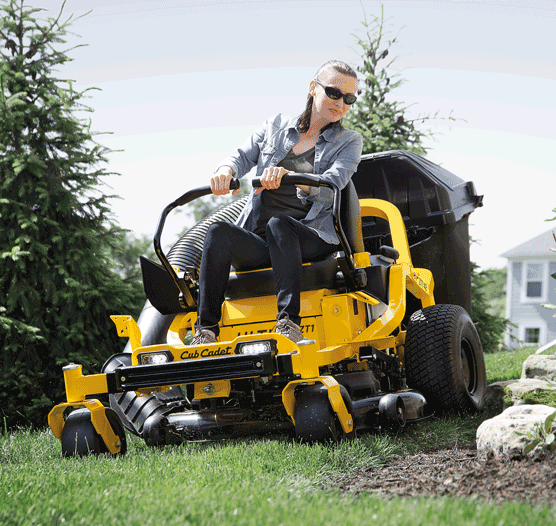

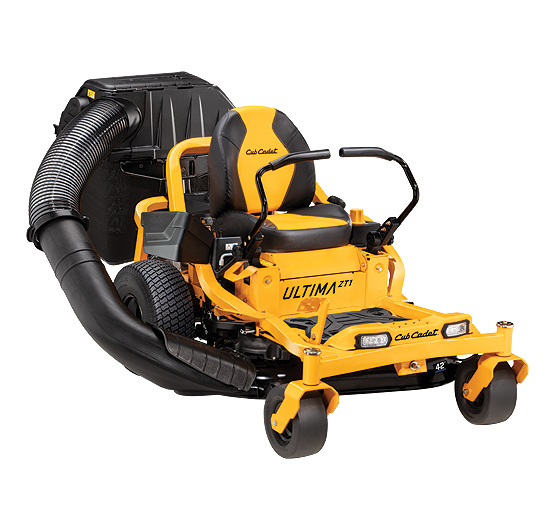

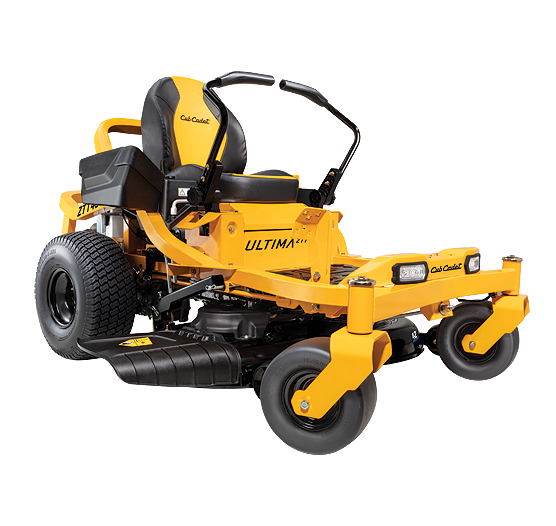

Cub Cadet Ultima ZT 1 42

• 22 HP 725cc professional-grade KOHLER 7000 Series V-twin OHV engine for reliable starting and exceptionally smooth, quiet operation
• Ideal for mowing slight rolling hills and several obstacles up to 2 acres
• Equipped with an open frame design and hinged/removable floor pan, allowing quick and easy access to the deck and engine for ease of maintenance
• Lap bar-controlled dual-hydro transmissions with mow in reverse

SPECIFICATIONS:

 OPERATION

CRUISE CONTROL

N/A

FRONT TIRES

11″x 6″-5″ smooth tread front wheels pivot 180 degrees without turf damage

HEADLIGHT

Yes

LAP BAR / STEERING WHEEL CONTROL

Quick Adjust Lap bar with premium dampers

PARK BRAKE / BRAKING

Integrated system in Lap Bars for ease of use

REAR TIRES

20”x8”-8″ Turf Master premium rear tires offer excellent traction, minimize turfing and provide a better ride on uneven ground at higher speeds

SEAT TYPE

Premium high back , knob adjustable, dual-stage isolators

PTO ENGAGEMENT

Electronic fingertip engagement

 MOWER DECK

DECK WASH

Patented SmartJet™ high-pressure deck washing system

DECK MATERIAL

13 gauged stamped steel shell

LEADING EDGE REINFORCEMENT

N/A

SIDE CONSTRUCTION

N/A

CUTTING HEIGHT

1” – 4.5” leads to a precise event cut

DECK BLADES

Twin Blades

DECK HEIGHT ADJUSTMENT

Foot pedal with spring assist creates the perfect cut

15 Positions

DECK SIZE/TYPE

42” Stamped Deck

SPINDLE CONSTRUCTION

Sealed cast aluminum housing (maintenance-free)

 DIMENSIONS

DIMENSIONS L/W/H

80” x 54” x 47”

WEIGHT (APPROX)

500 lbs.

 ENGINE & DRIVE SYSTEM

ENGINE TYPE

Kohler 7000 Series V-Twin OHV

FUEL CAPACITY

3.5 gal.

HORSEPOWER / CC’S

22 HP – 725cc

GROUND SPEED

7.5 mph forward / 3.5 mph reverse

TRANSMISSION

Dual Hydro-Gear™ EZT 2200

 CHASSIS

FRAME

2″ x 2″ fully welded tubular steel frame (e-coated)

FRONT AXLE / YOKES

Fixed 2″ x 2.5″ fully welded tubular steel axle (e-coated) / 1/4″ steel yokes provide greater durability

ROPS

N/A

REAR BUMPER

2″ x 2″ Tubular steel bumper

REAR HITCH

Standard

 WARRANTY

WARRANTY

3-year/ no-hour limited warranty & Limited lifetime frame and fabricated deck shell warranty
