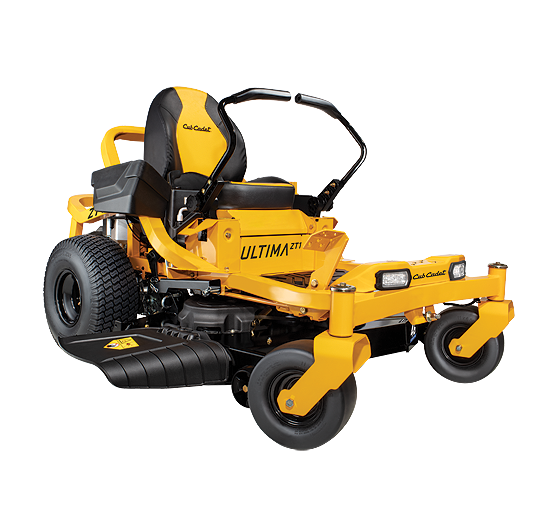

Cub Cadet Ultima ZT 1 46

SPECIFICATIONS

OPERATION

CRUISE CONTROL

N/A

FRONT TIRES

11″x 6″-5″ smooth tread front wheels
Pivot 180 degrees without turf damage

REAR TIRES

20”x 8”-8″ Turf Master premium rear tires
Provides excellent traction, minimize turfing and provide a better ride on uneven ground at higher speeds

HEADLIGHT

Illuminating Dual-LED Headlights
To provide ultimate vision for mowing in low light conditions

LAP BAR / STEERING WHEEL CONTROL

3- way adjustable ergonomic lap bars
Designed with integrated parking brake, and Mow-in-Reverse. Provides comfort with a simple operation

PARK BRAKE / BRAKING

Integrated system in Lap Bars
For ease of use

SEAT TYPE

Premium 18” high-back seat
Automotive-inspired, ergonomic, and fully adjustable. Equipped with a durable, advanced polymer seat suspension system to optimize comfort while reducing operators’ fatigue

PTO ENGAGEMENT

Electronic fingertip blade engagement PTO
Allows for smooth operation of the deck or attachments

 MOWER DECK

DECK WASH

SmartJet deck wash system
Provides high pressure water from your garden hose to clean out grass and debris build-up under the deck

DECK MATERIAL

46-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness

LEADING EDGE REINFORCEMENT

N/A

CUTTING HEIGHT

1” – 4.5”
Leads to a precise event cut

DECK BLADES

Twin Blades

DECK HEIGHT ADJUSTMENT

Foot pedal with spring assist
Creates the perfect cut

15 Positions

DECK SIZE/TYPE

46” Fabricated Aeroforce Cutting Deck

SPINDLE CONSTRUCTION

Sealed cast aluminum housing
Maintenance-free

 DIMENSIONS

DIMENSIONS L/W/H

80” x 58” x 47”

WEIGHT (APPROX)

570 lbs.

ENGINE & DRIVE SYSTEM

ENGINE TYPE

Kohler 700 Series V-Twin OHV

FUEL CAPACITY

3.5 gallon fuel tank capacity
Big enough to keep you mowing and minimize time loss for refueling needs

HORSEPOWER / CC’S

22 HP – 725cc

GROUND SPEED

7mph fwd / 3.5mph rev
Zero-turn controlled ground speeds quickly leave your lawn with a professional-quality finish.

TRANSMISSION

Dual Hydro-Gear™ EZT-2200™ dual hydrostatic rear-wheel transmission
For quick and effortless cuts

CHASSIS

FRAME

High-strength, continuous square 2” x 2” tubular steel frame with fully E-Coat lower frame and Triple Guard Corrosion Defense System™
Protects against wear and tear.

FRONT AXLE / YOKES

Fixed 2″ x 2.5″ fully welded tubular steel axle (e-coated) / 1/4″ steel yokes
Providing greater durability

ROPS

N/A

REAR BUMPER

2″ x 2″ Tubular steel bumper

REAR HITCH

Standard

WARRANTY

WARRANTY

3-year / unlimited-hour warranty.
The Strongest Warranty in its class
