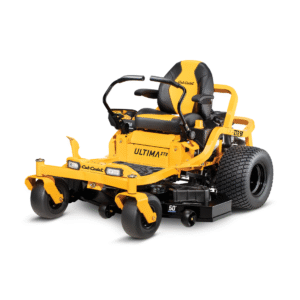

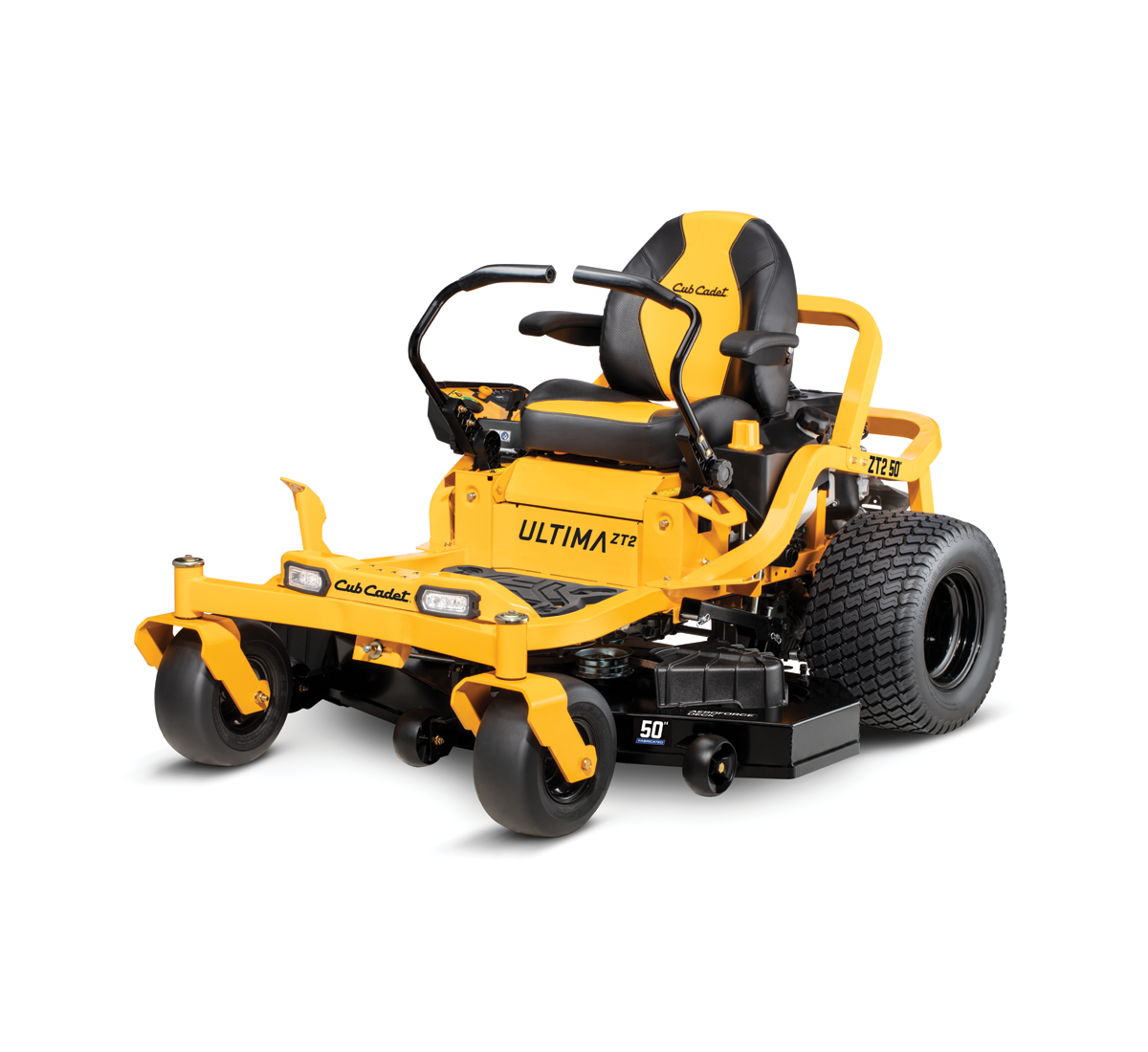

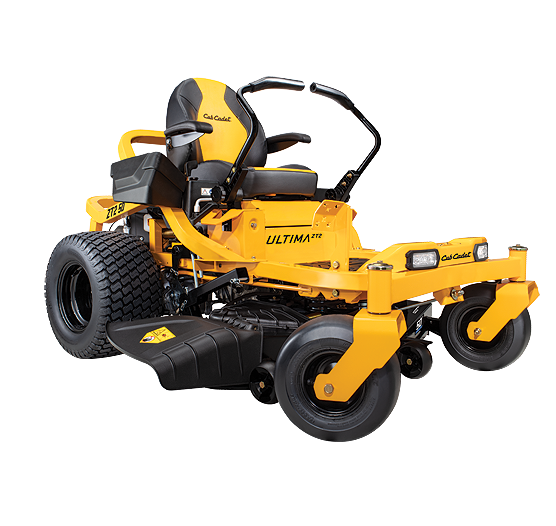

Cub Cadet Ultima ZT 2 50

• Premium 23 hp 726cc Kawasaki® FR 730 series Twin-cylinder OHV Engine, Commercial-grade powerplant that meets your yard’s toughest demands.
• Ideal for mowing slight rolling hills and several obstacles up to 5 acres
• Open frame design and hinged/removable floor pan allow easy access to the deck and engine for quick and simple maintenance
• A heavy-duty 11-gauge 50-in. fabricated triple-blade (high lift) deck

SPECIFICATIONS

OPERATION

CRUISE CONTROL

N/A

FRONT TIRES

13″x 6.5″-6″ smooth tread front wheels pivot 180 degrees without turf damage

REAR TIRES

20”x12”-10″ Turf Master premium rear tires offer excellent traction, minimize turfing and provide a better ride on uneven ground at higher speeds

HEADLIGHT

Illuminating Dual-LED Headlights provide ultimate vision for mowing in low light conditions

LAP BAR / STEERING WHEEL CONTROL

3- way adjustable ergonomic lap bar design with integrated parking brake, and Mow-in-Reverse. Provides comfort with a simple operation

PARK BRAKE / BRAKING

Integrated system in Lap Bars for ease of use

SEAT TYPE

Automotive-inspired, ergonomic, fully adjustable premium 18” high-back seat and a durable, advanced polymer seat suspension system optimizes comfort while reducing operators’ fatigue

PTO ENGAGEMENT

Electronic fingertip blade engagement PTO allows for smooth operation of the deck or attachments

MOWER DECK

DECK WASH

SmartJet deck wash system provides high pressure water that cleans out grass and debris build-up under the deck

DECK MATERIAL

A heavy-duty 11-gauge fabricated deck with reinforced leading edges, 1” x 3/18” trim side and an AeroForce™ cutting system has been independently tested and proven to deliver a best-in-class cut. Protected by the Cub Cadet Triple Guard Corrosion Defense System™ with E-Coat.

LEADING EDGE REINFORCEMENT

Reinforced 1” x.375” welded steel bar stock

CUTTING HEIGHT

1” – 4.5” leads to a precise event cut

DECK BLADES

Triple Blade deck blades

meaning fewer clumps and stragglers, finer clippings and increased evenness.

DECK HEIGHT ADJUSTMENT

Foot pedal with spring assist creates the perfect cut

15 Positions

DECK SIZE/TYPE

50” Fabricated Aeroforce

SPINDLE CONSTRUCTION

Sealed cast aluminum housing (maintenance-free)

DIMENSIONS

DIMENSIONS L/W/H

80” x 61” x 48”

WEIGHT (APPROX)

600 lbs.

ENGINE & DRIVE SYSTEM

ENGINE TYPE

Kawasaki FR Series V-twin OHV

FUEL CAPACITY

3.5 Gallon fuel tank capacity to keep you mowing and minimize time loss for refueling needs

HORSEPOWER / CC’S

23 HP – 726cc

GROUND SPEED

7.5 mph Fwd / 3.5mph Rev zero-turn controlled ground speeds quickly leave your lawn with a professional-quality finish.

TRANSMISSION

Dual Hydro-Gear™ ZT-2800™ w/oil reservoir and filter

quickly leaves your lawn with a professional-quality finish

CHASSIS

FRAME

High-strength, continuous square 2” x 2” tubular steel frame with fully E-Coat lower frame and Triple Guard Corrosion Defense System™ protects against wear and tear.

FRONT AXLE / YOKES

Fixed 2″ x 2.5″ fully welded tubular steel axle (e-coated) / 5/16″ steel yokes provide premium strength

ROPS

N/A

REAR BUMPER

2″ x 2″ Tubular steel bumper

REAR HITCH

Standard

WARRANTY

WARRANTY

The Strongest Warranty in its class

3-year / unlimited-hour warranty. Plus, limited lifetime warranty on frame and fabricated deck shell.
