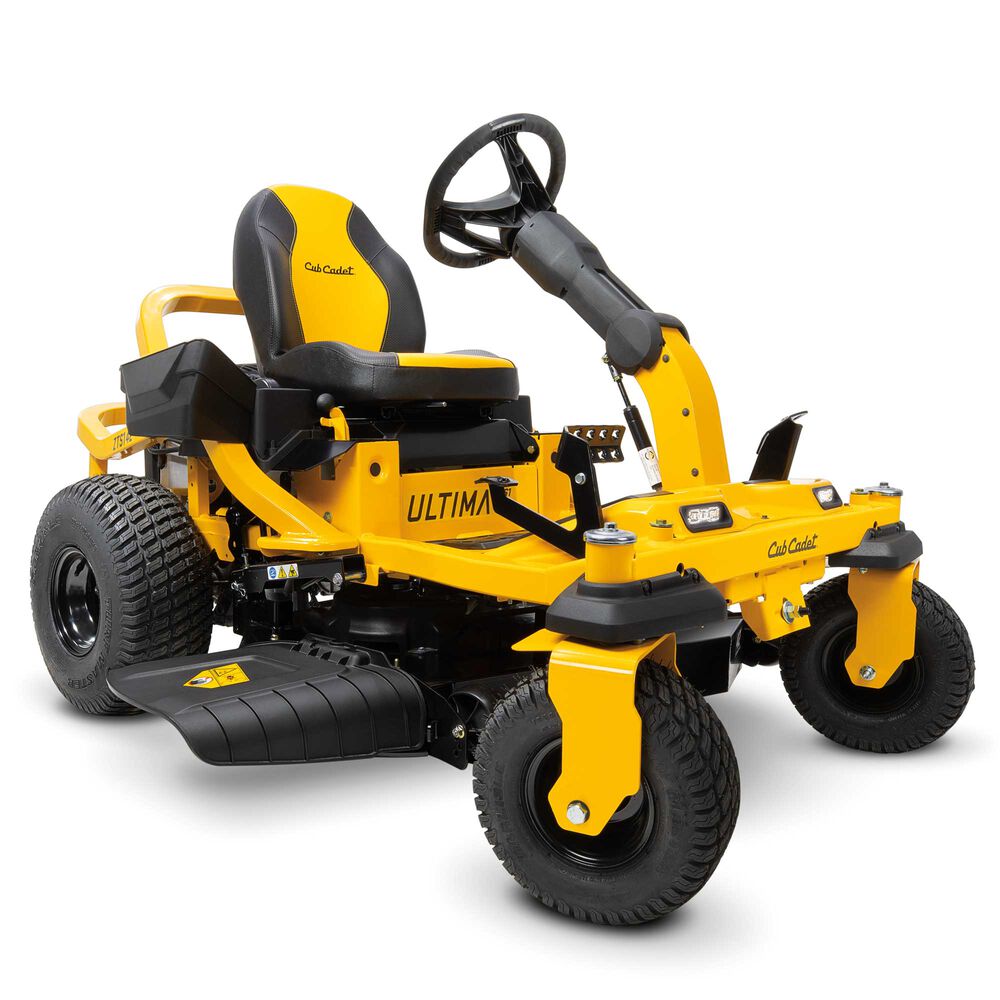

Ultima Series ZTS

ZTS 1 42

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 22 HP/725cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
• 42-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

Take Control with Synchro-Steer

The Ultima ZTS brings Cub Cadet’s innovative and proprietary Synchro-Steer™ technology to the proven Ultima Series™ platform for enhanced precision and confident control on challenging hills—all backed by the superior strength, comfort and cut quality of the category-leading zero-turn.
The ZTS delivers elite control for a perfect cut on hills and slopes of up to 20-degrees.

See it in action

LEARN MORE ABOUT ULTIMA SERIES

PRODUCT SPECIFICATIONS:

Engine

AIR FILTER

Dual element



CHARGING SYSTEM

12 amp regulated



CHOKE

Choke-a-matic



CYLINDERS

Twin



ENGINE BRAND

Kohler®



ENGINE DISPLACEMENT

725cc



ENGINE MODEL

7000 Series



ENGINE MODEL NUMBER

KT725



ENGINE OIL CAPACITY

2.0 qt. US (1.89 L)



ENGINE START

Ignition Key



FUEL DELIVERY

Carburetor



FUEL GAUGE

No



FUEL TANK CAPACITY

3.5 gal. US (13.25 L)



GOVERNOR

Mechanical



ENGINE OUTPUT

22HP



LUBRICATION

Fully pressurized



OIL FILTER

Yes



STARTER TYPE

Electric



Cutting Deck

ANTI-SCALPING

2-gauge wheels



BLADE(S)

2

CUTTING HEIGHT RANGE

1” – 4.5”



DECK CONSTRUCTION

Fabricated



DECK CUTTING WIDTH

42 in



DECK ENGAGEMENT (PTO)

Electric



DECK LIFT

Foot pedal with Dial Adjust



DECK MATERIAL

11-gauge steel



DECK POSITIONS

15



DECK WASH

No



Comfort

ARMRESTS

No



SEAT ADJUSTMENT

Lever



SEAT TYPE

20″ high back



Battery

BATTERY

210 CCA



BATTERY TYPE

AGM (Absorbent Glass Mat)



BATTERY VOLTAGE

12V



Controls

BRAKES

Disc



CRUISE CONTROL

No



STEERING CONTROL

Steering Wheel



Warranty

COMMERCIAL WARRANTY

No



DECK SHELL WARRANTY

Lifetime Limited



FRAME WARRANTY

Lifetime Limited



WARRANTY

3-year unlimited hours



Chassis

CORROSION PROTECTION

Yes



FRAME

2” x 2” tubular steel



REAR TOW HITCH

Yes



ROPS

No



TURNING RADIUS

0°



Additional Specifications

CUP HOLDER

Yes



HEADLIGHT(S)

Dual-LED



HOUR METER

No



MODEL NUMBER

17ARGBYNA10



MULCH KIT

Available separately



OPERATOR PRESENCE SYSTEM

Yes



PARKING BRAKE

Foot Operated



Disclaimer

SPECIFICATIONS DISCLAIMER

Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.



Drive System

DRIVE SYSTEM

Hydrostatic



FORWARD SPEED

7 MPH / 11.3 km/h



REVERSE SPEED

3.5 MPH / 5.6 km/h



TRANSMISSION

Hydro-Gear EZT 2200



Wheels

FRONT TIRES

13″x 6.5″-6″



REAR TIRES

20x 8-8″



TIRE TREAD

Turf Master / Multi Trac



Specifications

SERIES

Ultima Series” ZTS
