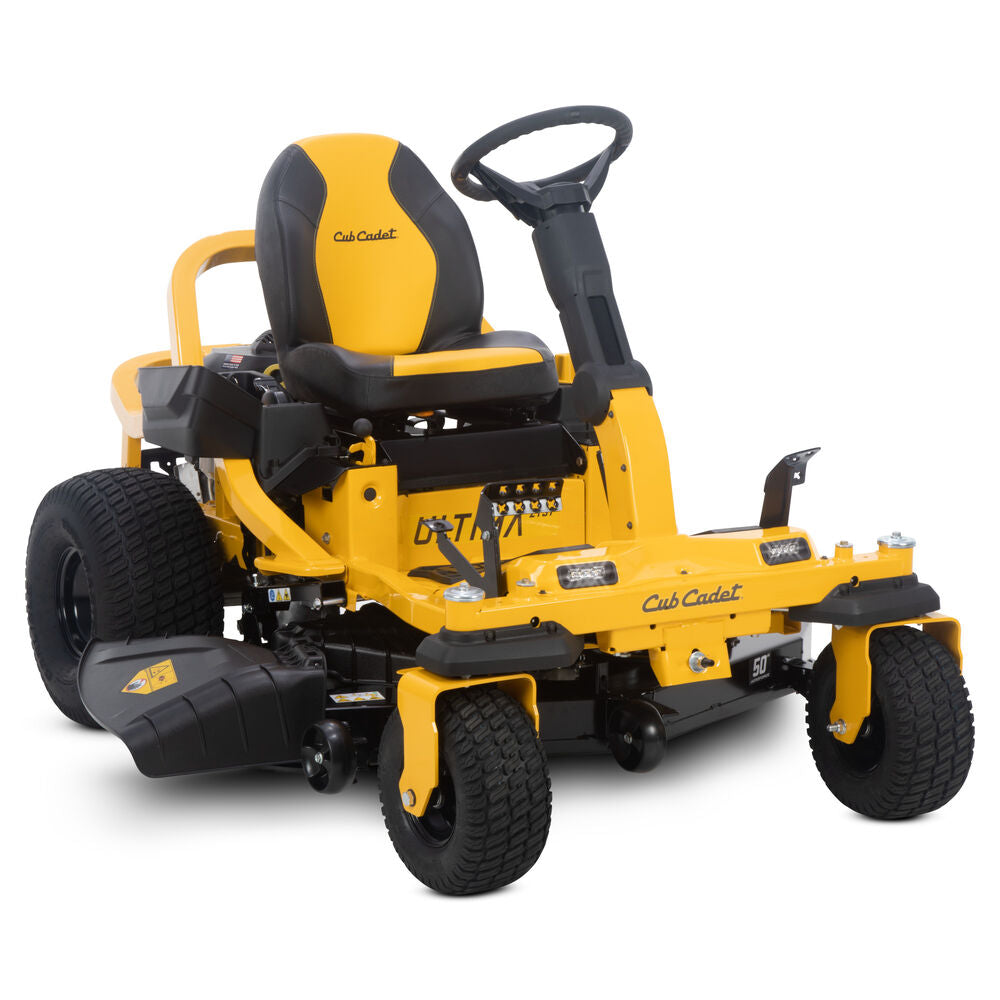

Ultima Series ZTS

ZTS 1 50

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 23 HP/725cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
• 50-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

Take Control with Synchro-Steer

The Ultima ZTS brings Cub Cadet’s innovative and proprietary Synchro-Steer™ technology to the proven Ultima Series™ platform for enhanced precision and confident control on challenging hills—all backed by the superior strength, comfort and cut quality of the category-leading zero-turn.
The ZTS delivers elite control for a perfect cut on hills and slopes of up to 20-degrees.

See it in action

LEARN MORE ABOUT ULTIMA SERIES

PRODUCT SPECIFICATIONS:



 Engine

AIR FILTER

Dual element

CHARGING SYSTEM

12 amp regulated

CHOKE

Choke-a-matic

CYLINDERS

Twin

ENGINE BRAND

Kohler®

ENGINE DISPLACEMENT

725cc

ENGINE MODEL

7000 Series

ENGINE MODEL NUMBER

KT725

ENGINE OIL CAPACITY

2.0 qt. US (1.89 L)

ENGINE START

Ignition Key

FUEL DELIVERY

Carburetor

FUEL GAUGE

No

FUEL TANK CAPACITY

3.5 gal. US (13.25 L)

GOVERNOR

Mechanical

ENGINE OUTPUT

23HP

LUBRICATION

Fully pressurized

OIL FILTER

Yes

STARTER TYPE

Electric

 Cutting Deck

ANTI-SCALPING

3-gauge wheels

BLADE(S)

3

CUTTING HEIGHT RANGE

1” – 4.5”

DECK CONSTRUCTION

Fabricated

DECK CUTTING WIDTH

50 in

DECK ENGAGEMENT (PTO)

Electric

DECK LIFT

Foot pedal with Dial Adjust

DECK MATERIAL

11-gauge steel

DECK POSITIONS

15

DECK WASH

No

 Comfort

ARMRESTS

No

SEAT ADJUSTMENT

Lever

SEAT TYPE

20″ high back

 Battery

BATTERY

210 CCA

BATTERY TYPE

AGM (Absorbent Glass Mat)

BATTERY VOLTAGE

12V

 Controls

BRAKES

Disc

CRUISE CONTROL

No

STEERING CONTROL

Steering Wheel

 Warranty

COMMERCIAL WARRANTY

No

DECK SHELL WARRANTY

Lifetime Limited

FRAME WARRANTY

Lifetime Limited

WARRANTY

3-year unlimited hours

 Chassis

CORROSION PROTECTION

Yes

FRAME

2” x 2” tubular steel

REAR TOW HITCH

Yes

ROPS

No

TURNING RADIUS

0°

 Additional Specifications

CUP HOLDER

Yes

HEADLIGHT(S)

Dual-LED

HOUR METER

No

MODEL NUMBER

17ARGBYLA10

MULCH KIT

Available separately

OPERATOR PRESENCE SYSTEM

Yes

PARKING BRAKE

Foot Operated

 Disclaimer

SPECIFICATIONS DISCLAIMER

Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.

 Drive System

DRIVE SYSTEM

Hydrostatic

FORWARD SPEED

7 MPH / 11.3 km/h

REVERSE SPEED

3.5 MPH / 5.6 km/h

TRANSMISSION

Hydro-Gear EZT 2200

 Wheels

FRONT TIRES

13″x 6.5″-6″

REAR TIRES

20x 10-8″

TIRE TREAD

Turf Master / Multi Trac

 Specifications

SERIES

Ultima Series” ZTS
