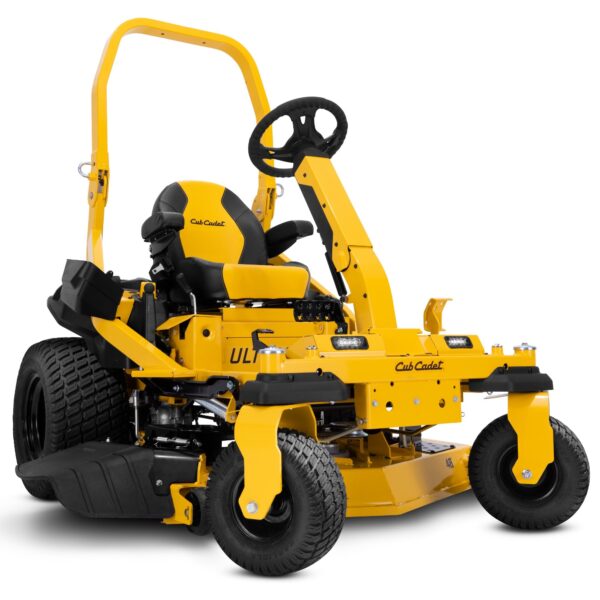

Cub Cadet Ultima ZTXS 4 48 Zero Turn

AVAILABLE SPRING 2023

Cub Cadet Ultima ZTXS 4 48 Zero Turn

Kohler Twin KT Pro 7000 Series/ 725cc

• Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°

SPECIFICATIONS:

 Engine

AIR FILTER

Dual element

CHARGING SYSTEM

12 amp regulated

CHOKE

Choke-a-matic

CYLINDERS

Twin

ENGINE BRAND

Kohler®

ENGINE DISPLACEMENT

725cc

ENGINE MODEL

Pro 7000 series

ENGINE MODEL NUMBER

KT730

ENGINE OIL CAPACITY

2.0 qt. US (1.89 L)

ENGINE START

Ignition Key

FUEL DELIVERY

Carburetor

FUEL GAUGE

Yes

FUEL TANK CAPACITY

5.5 gal. US (20.82 L)

GOVERNOR

Mechanical

ENGINE OUTPUT

23HP

LUBRICATION

Fully pressurized

OIL FILTER

Yes

STARTER TYPE

Electric

 Cutting Deck

ANTI-SCALPING

Three gauge wheels

BLADE(S)

Three

CUTTING HEIGHT RANGE

1″ – 4.75″

DECK CONSTRUCTION

Fabricated

DECK CUTTING WIDTH

48 in

DECK ENGAGEMENT (PTO)

Electric

DECK LIFT

Foot pedal with Dial Adjust

DECK MATERIAL

10-gauge steel with 2-gauge reinforcement

DECK POSITIONS

17

DECK WASH

No

 Comfort

ARMRESTS

Yes

SEAT ADJUSTMENT

Lever

SEAT TYPE

20″ high back

 Battery

BATTERY

210 CCA

BATTERY TYPE

AGM (Absorbent Glass Mat)

BATTERY VOLTAGE

12V

 Controls

BRAKES

Disc

CRUISE CONTROL

No

STEERING CONTROL

Steering Wheel

 Warranty

COMMERCIAL WARRANTY

4-year 800 hours

DECK SHELL WARRANTY

Lifetime limited

FRAME WARRANTY

Lifetime Limited

WARRANTY

4-year 800 hours

 Chassis

CORROSION PROTECTION

Yes

FRAME

1.5″ x 3″ tubular steel

REAR TOW HITCH

Yes

ROPS

Yes

TURNING RADIUS

0°

 Additional Specifications

CUP HOLDER

Yes

HEADLIGHT(S)

Dual-LED

HOUR METER

Yes

MODEL NUMBER

47RSCAB6010

MULCH KIT

Available separately

OPERATOR PRESENCE SYSTEM

Yes

PARKING BRAKE

Foot Controlled

 Disclaimer

SPECIFICATIONS DISCLAIMER

Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.

 Drive System

DRIVE SYSTEM

Hydrostatic

FORWARD SPEED

8 MPH /12.9 km/h

REVERSE SPEED

3.5 MPH / 5.6 km/h

TRANSMISSION

Hydro-Gear ZT 3100

 Wheels

FRONT TIRES

13″x 6.5″-6″

REAR TIRES

22″x 12″-12″

TIRE TREAD

Turf Master / Multi Trac

 Specifications

SERIES

Ultima Series™ ZTXS
