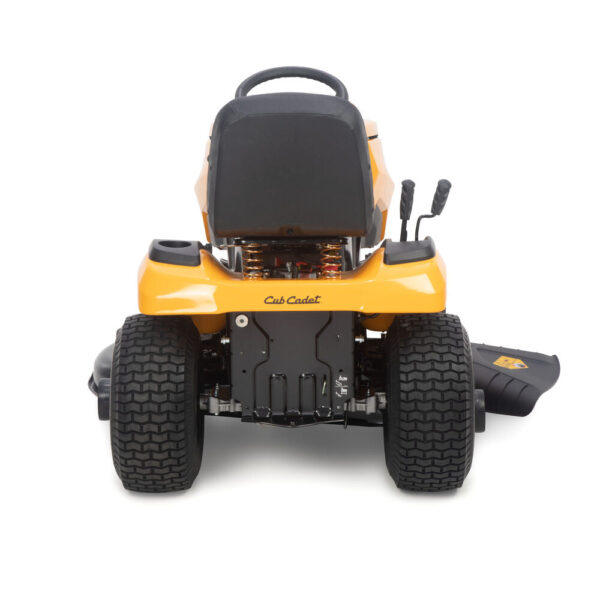

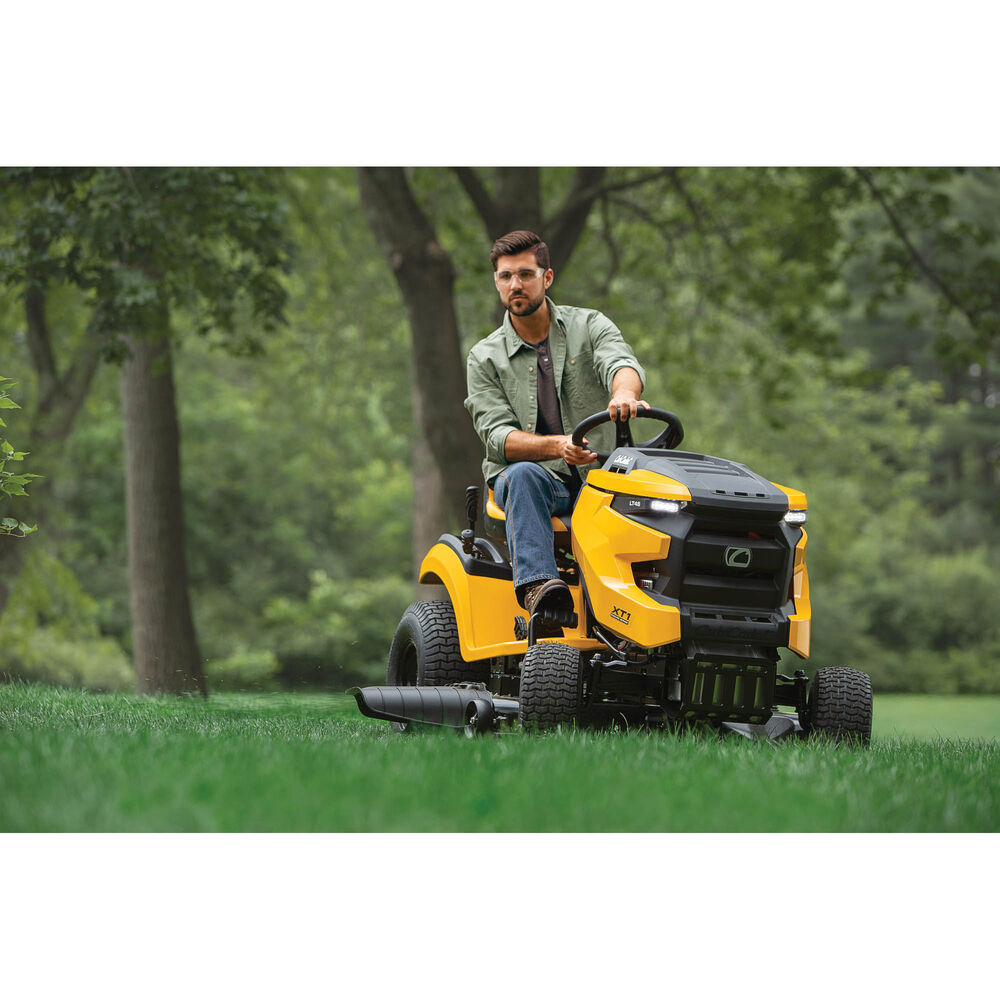

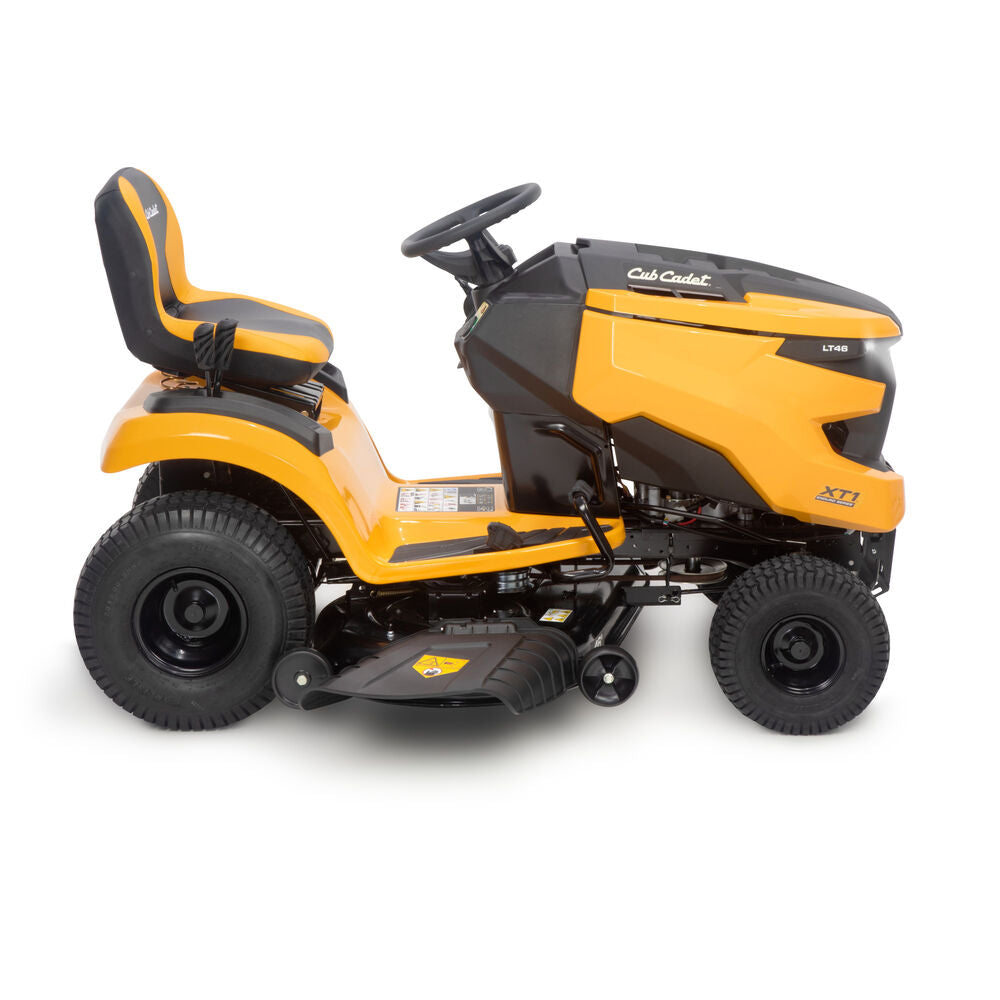

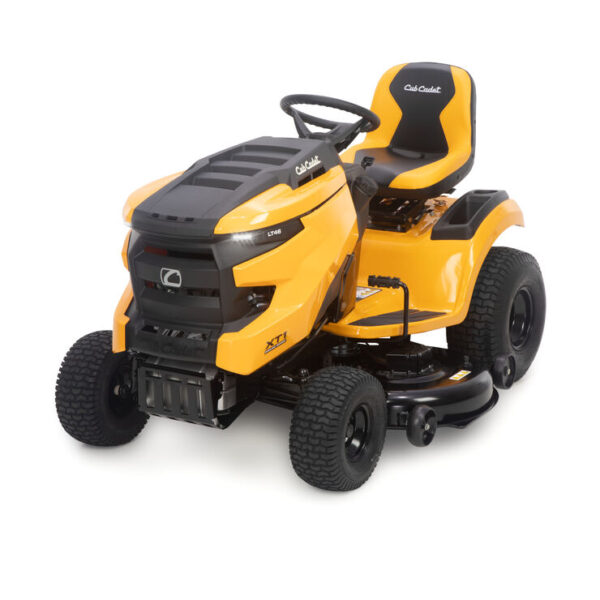

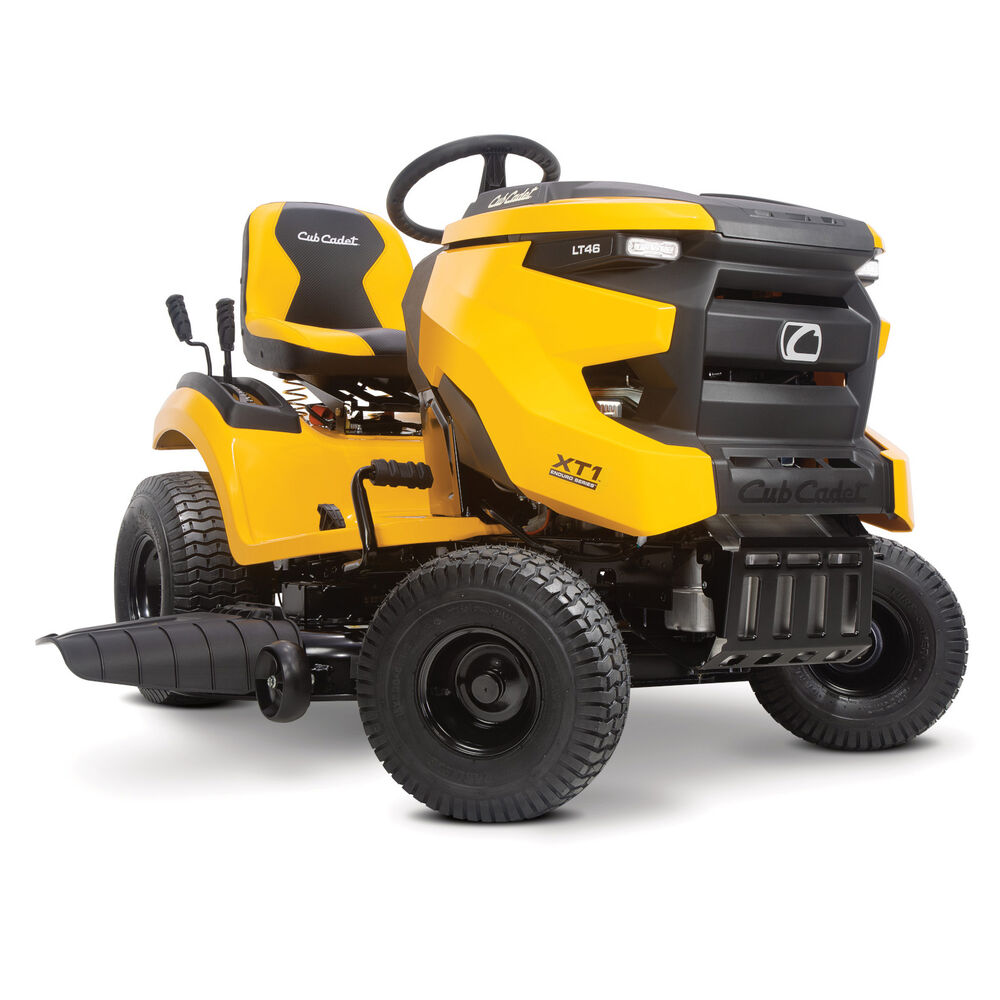

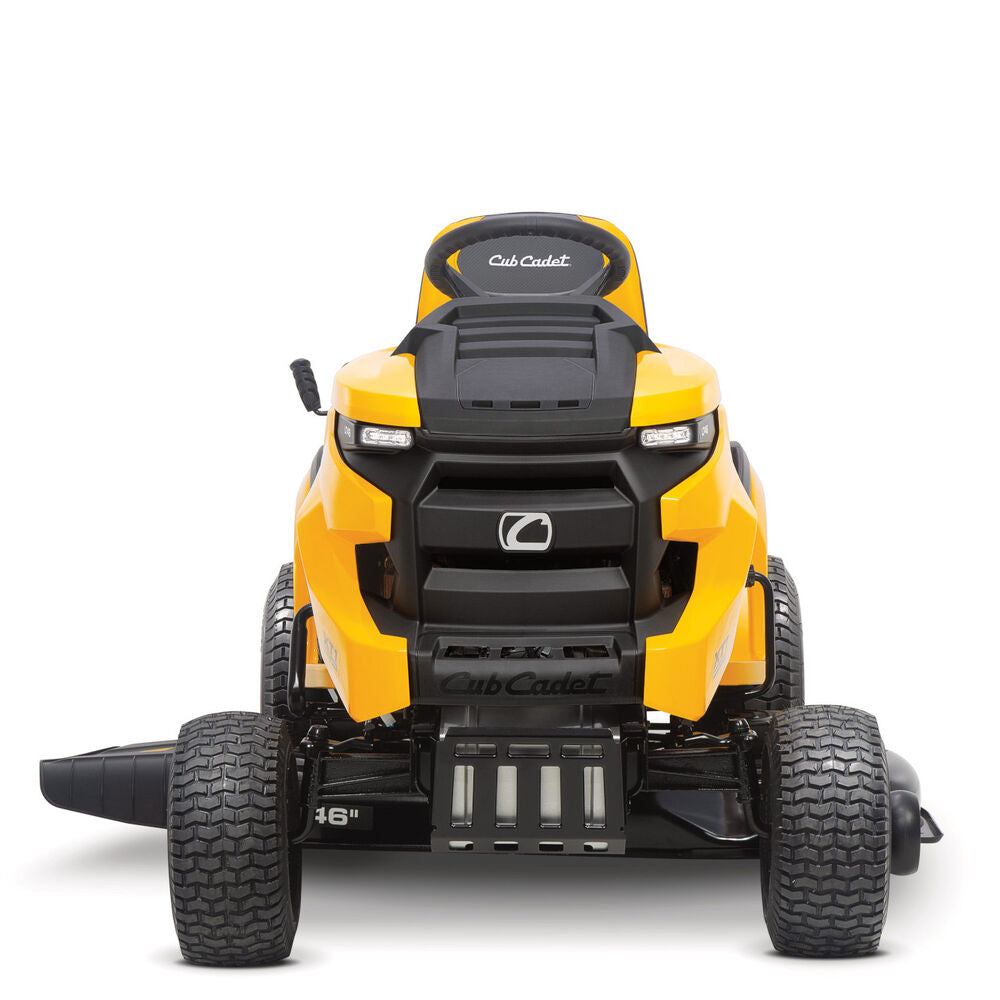

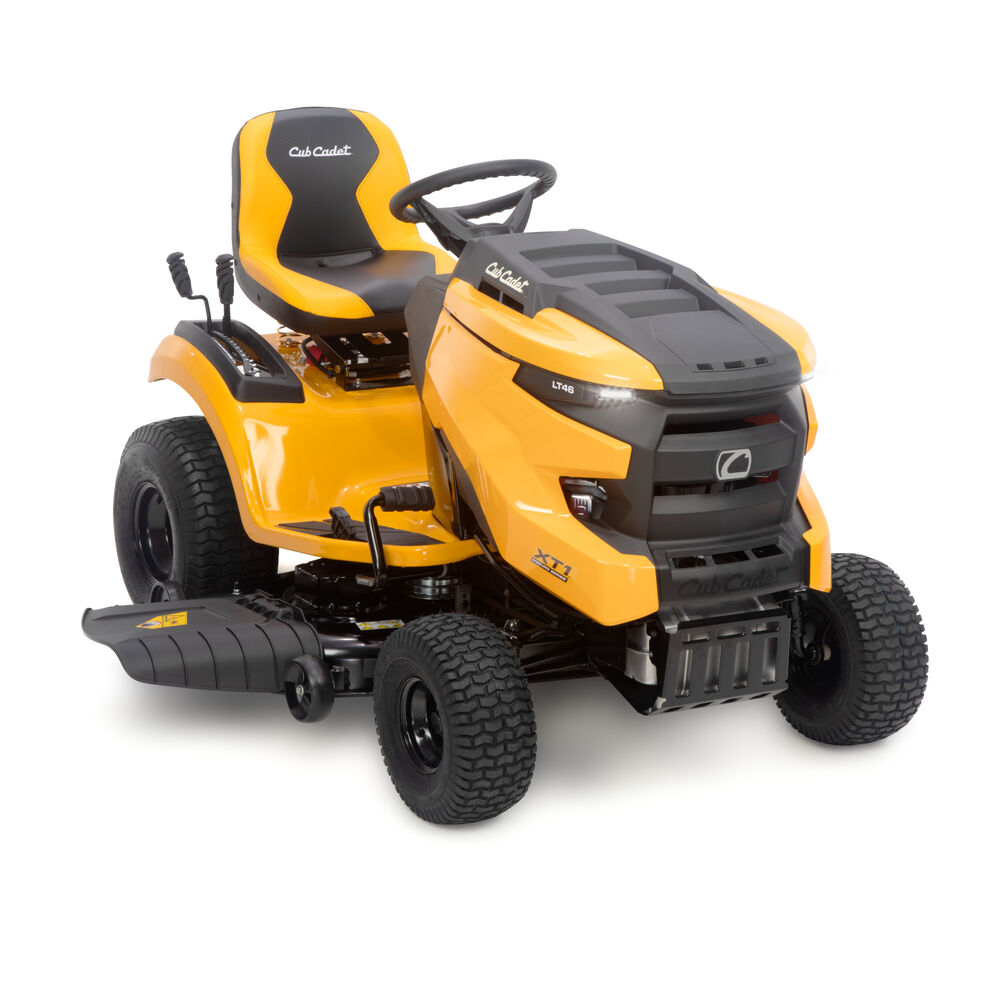

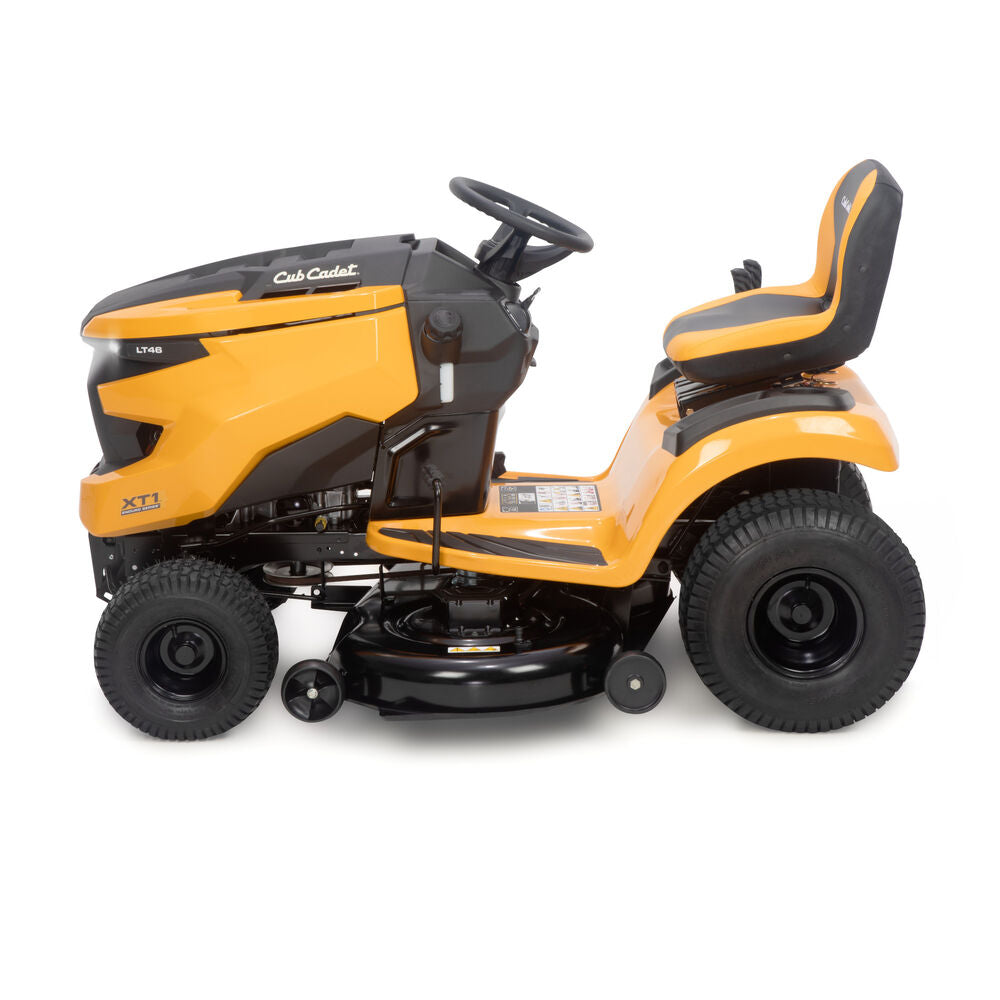

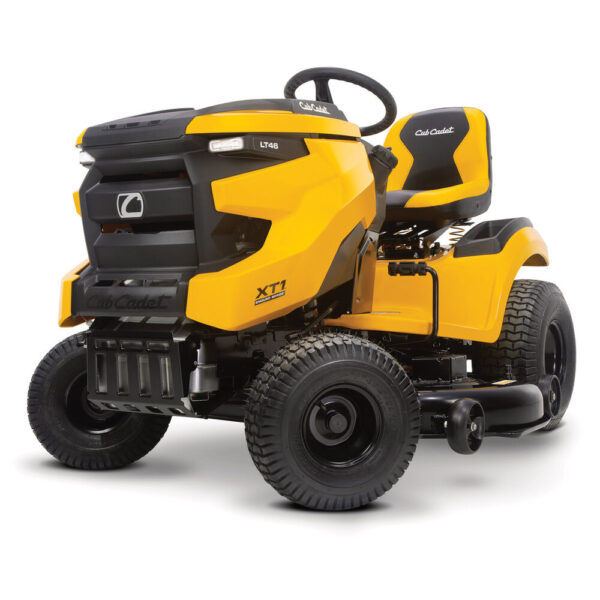

Cub Cadet XT1 LT 46 Lawn Tractor

Cub Cadet XT1 LT 46

• 46″ heavy-duty, stamped twin-blade cutting deck
• 23 HP Kohler V-Twin OHV engine
• Deluxe hydrostatic transmission for the smoothest operation

ENGINE

ENGINE TYPE

23 HP PROFESSIONAL-GRADE KOHLER^® 7000 SERIES V-TWIN OHV

CYLINDERS/MATERIAL

TWIN/CAST-IRON SLEEVE

LUBRICATION

FULLY PRESSURIZED AUTOMOTIVE-STYLE OIL PUMP W/ SPIN-ON OIL FILTER

CHASSIS

HOOD

FRONT PIVOT, HIGH IMPACT WITH QUICK REMOVAL DESIGN

ELECTRICAL SYSTEM

BATTERY

230 COLD CRANK AMPS

CHARGING SYSTEM

FLYWHEEL ALTERNATOR – 12 AMP REGULATED

HEADLIGHTS

NEW LED HIGH ILLUMINATION

SYSTEM MONITOR PACKAGE

DIGITAL HOUR METER/SERVICE MINDER, OIL, BATTERY, BRAKE AND PTO START SEQUENCE

CUB CONNECT™

N/A

OPERATION

PTO CLUTCH

SMOOTH LEVER ENGAGEMENT

DECK LIFT

LEVER/12-POSITION/SPRING ASSISTED

SEAT

CUB COMFORT™ HIGH-BACK SEAT WITH 10 DEGREE INCLINE AND SLIDE

MOWER DECK

CUTTING WIDTH/BLADES

46″/TWIN BLADES

DECK CONSTRUCTION

STAMPED

DECK CUTTING HEIGHT

1″ – 4″

ANTI-SCALPING WHEELS (FRONT/REAR)

2 BALL/2 NARROW

MULCH KIT

OPTIONAL

DECK SPINDLES

3/4″ WITH STEEL CAP AND TRIPLE LIP SEALED

DECK PULLEYS

SPLIT STEEL SPINDLE PULLEYS/OVERSIZED HEAVY-DUTY IDLERS

DECK ATTACH/REMOVAL

QUICKATTACH™ (NO TOOLS REQUIRED)

DECK WASH

PATENTED SMARTJET™ HIGH-PRESSURE DECK WASHING SYSTEM

GENERAL

SAFETY SYSTEMS

NEUTRAL START, OPERATOR PRESENCE, REVERSE SAFETY SWITCH, BRAKE PEDAL LOCK, REVTEK REVERSE MOWING TECHNOLOGY

ADDITIONAL SPECIFICATIONS

TIRES (FRONT/REAR)

15″ X 6″ SLEEVE BEARING/20″ X 8″

TIRE TREAD

TURF SAVER

FORWARD SPEED

5.5 MPH

REVERSE SPEED

3.1 MPH

FUEL TANK CAPACITY

3 GAL. EASY FILL, RUSTPROOF

ENGINE OIL CAPACITY

2 QT.

WHEELBASE

47″

ESTIMATED WEIGHT

420 LBS.

POWER SYSTEM

POWERTRAIN

TUFF TORQ® TL200 FOOT-CONTROLLED HYDROSTATIC TRANSMISSION

REAR DIFFERENTIAL LOCK

N/A

ENGINE TO TRANSMISSION

HEAVY-DUTY BELT

CRUISE CONTROL

SOFT TOUCH ENGAGEMENT

TRANSMISSION HOUSING

CAST ALUMINUM

FRAME

FRAME

FULLY ROBOTICALLY-WELDED FRAME WITH NEW E-COATING CORROSION DEFENSE SYSTEM (5-YEAR LIMITED WARRANTY)

BUMPER

OPTIONAL

DIMENSIONS

LENGTH/WIDTH/HEIGHT

68″/54″/42.5″

SPECIFICATIONS

WARRANTY

3-YEAR UNLIMITED HOURS (INCLUDES POWERTRAIN) & 5-YEAR CHASSIS & FRONT AXLE UNLIMITED HOURS/LIMITED LIFETIME FABRICATED DECK SHELL

STEERING

REAR AXLE

3/4″ W/DUAL PM STEEL DRIVE HUBS

STEERING/TURNING RADIUS

NEW OPTIMIZED STEERING SYSTEM, MANUAL SECTOR AND PINION/16″

FRONT PIVOT BAR

HEAVY-DUTY CAST-IRON (5-YEAR LIMITED WARRANTY/UNLIMITED HOURS)

FRONT AXLES

HEAVY-DUTY 3/4″ THROUGH MACHINED BUSHINGS

BALL JOINTS

FULLY-ADJUSTABLE/AUTOMOTIVE-STYLE

CONTROLS

BRAKES

AUTOMOTIVE-STYLE DISC
