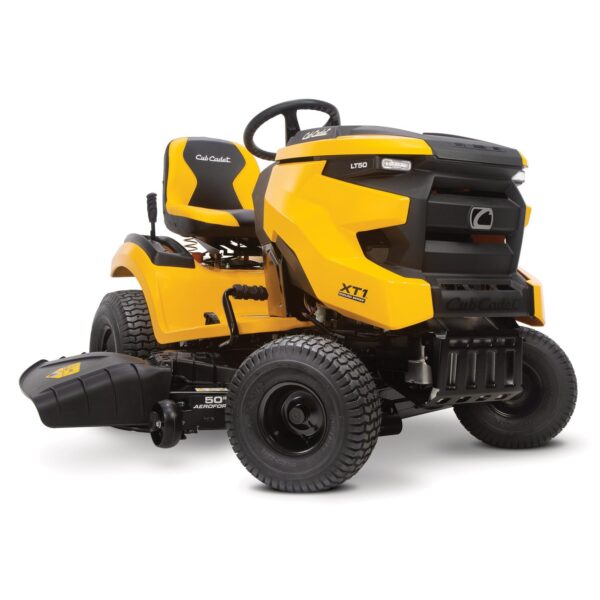

Cub Cadet XT1 LT 50 Lawn Tractor

Cub Cadet XT1 LT 50

• 50″ heavy-duty fabricated, triple-blade cutting deck
• 24 HP Kohler V-Twin OHV engine
• Hydrostatic transmission; no shifting – just push a pedal and go

SPECIFICATIONS

Engine

• Engine Brand Kohler®
• Engine Model Professional-grade 7000 Series OHV
• Engine Displacement 24 HP
• Fuel Tank Capacity 3 gal. easy fill, rustproof
• Cylinders/Material Twin/Cast-iron sleeve
• Engine Start Electric
• Engine Oil Capacity 2 qt.
• Lubrication Fully pressurized automotive-style oil pump w/ spin-on oil filter
• Charging System Flywheel Alternator – 12 amp regulated
• Battery Voltage 230 cold crank amps

Drive System

• Transmission Tuff Torq® foot-controlled hydrostatic transmission (K46)
• Forward Speed 5 mph
• Reverse Speed 1 mph
• Rear Axle 3/4″ w/dual PM steel drive hubs
• Transmission Housing Cast aluminum
• Engine to Transmission Heavy-duty belt

Cutting Deck

• Deck Cutting Width 50″
• Deck Wash Patented SmartJet™ high-pressure deck washing system
• Deck Material Fabricated
• Deck Attach/Removal QuickAttach™ (no tools required)
• Deck Engagement (PTO) Electronic fingertip engagement
• Spindle Construction 3/4″ with steel cap and Triple Lip Sealed
• Blade(s)Triple Blades
• Deck Lift Lever/12-position/spring assisted
• Cutting Height Range 1″ – 4″
• Anti-Scalping 2 Ball/2 Ball/Nose Roller
• Deck Positions 12-position

Chassis

• Frame Fully robotically-welded frame with new e-coating corrosion defense system (5-year limited warranty)
• Front Axle(s) Heavy-duty 3/4″ through machined bushings
• Turning Radius Manual sector and pinion/16″
• Front Tires 15″ x 6″ sleeve bearing
• Rear Tires 20″ x 8″
• Tire Tread Turf Saver
• Bumper Optional

Controls

• Cruise Control Soft touch engagement
• Brakes Automotive-style disc
• Steering Wheel Control Optimized steering system
• Headlight(s) LED High Illumination
• Display Digital hour meter/service minder, oil, battery, brake and PTO start sequence

Comfort

• Seat Type Cub Comfort™ high-back seat with 10 degree incline and slide

Dimensions

• Dimensions L/W/H 68″/60″/42.5″
• Weight (approx.) 500 lbs.
• Wheelbase 47″

Additional Specifications

• Mulch Kit Optional

Warranty

• Warranty 3-year unlimited hours (includes powertrain)
• Front Axle Warranty 5-year chassis & front axle unlimited hours
